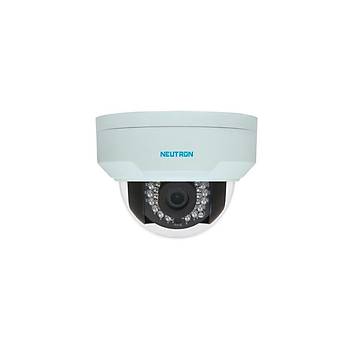

| IPC324ER3-DVPF28 |
IPC324ER3-DVPF36 |
| Camera |
| Sensor |
1/3", 4.0 megapixel, progressive scan, CMOS |
| Lens |
2.8mm@F2.0 |
3.6mm@F2.0 |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.8 |
63 |
25.2 |
12.6 |
6.3 |
| 3.6 |
81 |
32.4 |
16.2 |
8.1 |
| Angle of View (H) |
104.4° |
86.4° |
| Angle of View (V) |
67° |
53.2° |
| Angle of View (O) |
135.7° |
112.3° |
| Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 75° |
Rotate: 0° ~ 360° |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination |
Colour: 0.03Lux (F2.0, AGC ON)
0Lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Digital noise reduction |
2D/3D DNR |
| S/N |
>55dB |
| IR Range |
Up to 30m (98ft) IR range |
| Defog |
Digital Defog |
| WDR |
120dB |
| Video |
| Video Compression |
Ultra 265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main Profile, High Profile |
| Frame Rate |
Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps |
| HLC |
Supported |
| BLC |
Supported |
| 9:16 Corridor Mode |
Supported |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 8 areas |
| ROI |
Up to 8 areas |
| Motion Detection |
Up to 4 areas |
| Audio |
| Audio Compression |
G.711 |
| Two-way audio |
Supported |
| Suppression |
Supported |
| Sampling Rate |
8KHZ |
| Storage |
| Edge Storage |
Micro SD, up to 256GB |
| Network Storage |
ANR |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
| Interface |
| Audio I/O |
Input: impedance 35kΩ; amplitude 2V [p-p] |
| Output: impedance 600Ω; amplitude 2V [p-p] |
| Alarm I/O |
1/1 |
| Network |
1 RJ45 10M/100M Base-TX Ethernet |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 5W |
| Dimensions (Ø x H) |
Φ108.5 x 81mm (Ø4.28” x 3.2”) |
| Weight |
0.45kg (0.99lb) |
| Working Environment |
-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Ingress Protection |
IP67 |
| Vandal Resistant |
IK10 |
|
|
